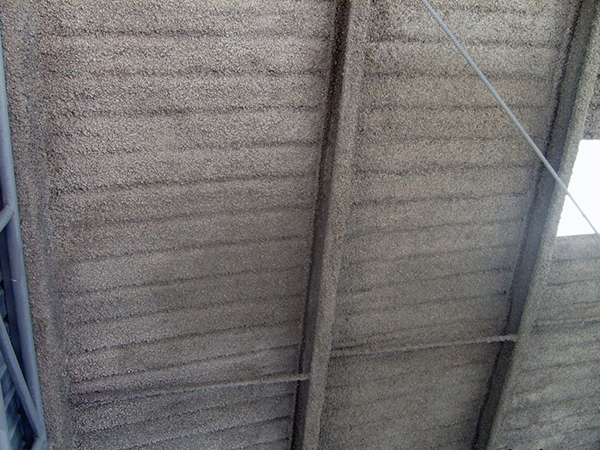

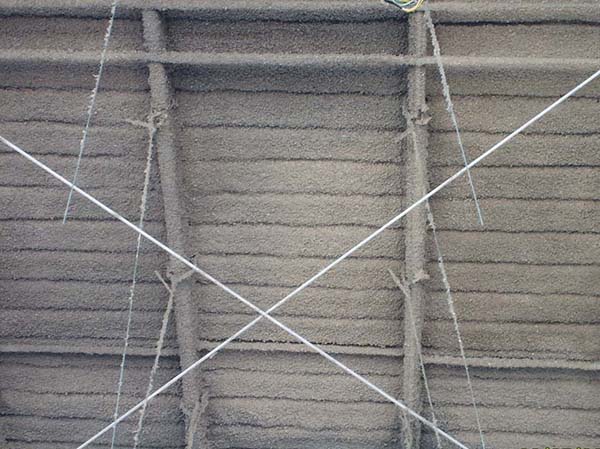

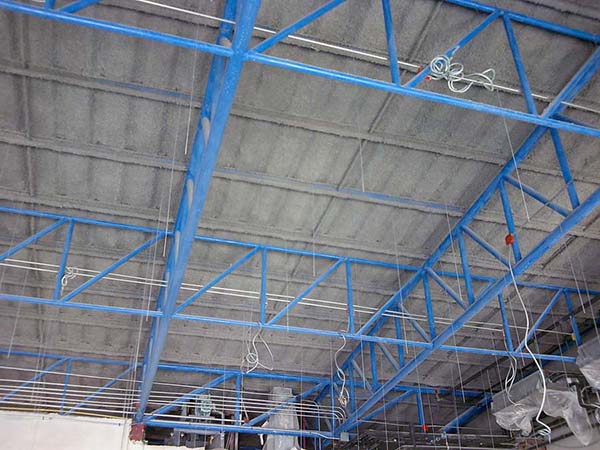

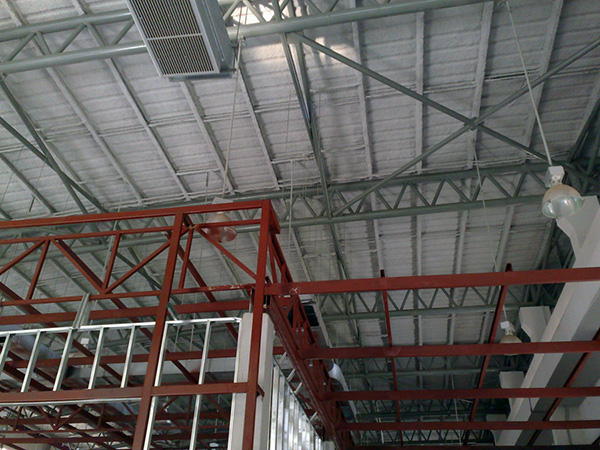

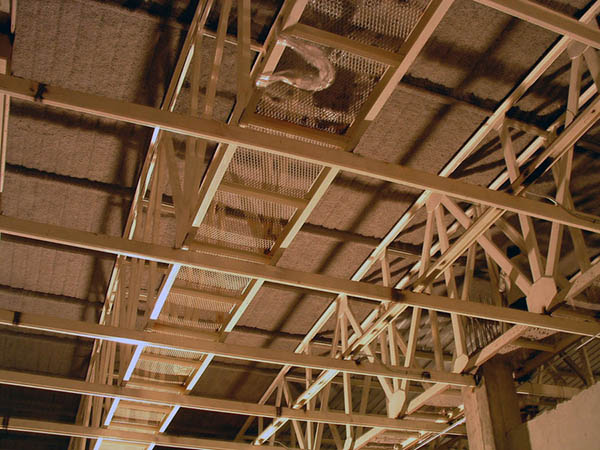

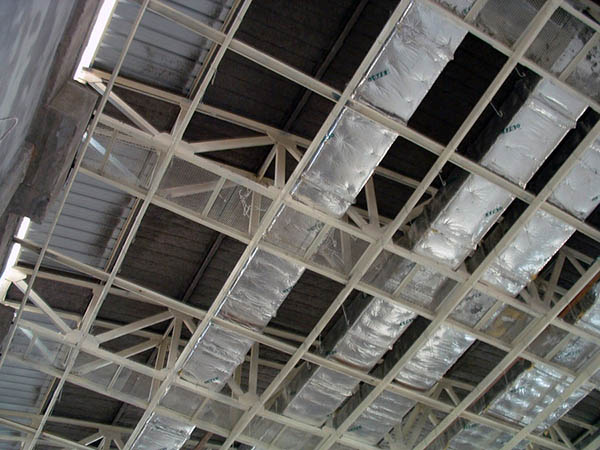

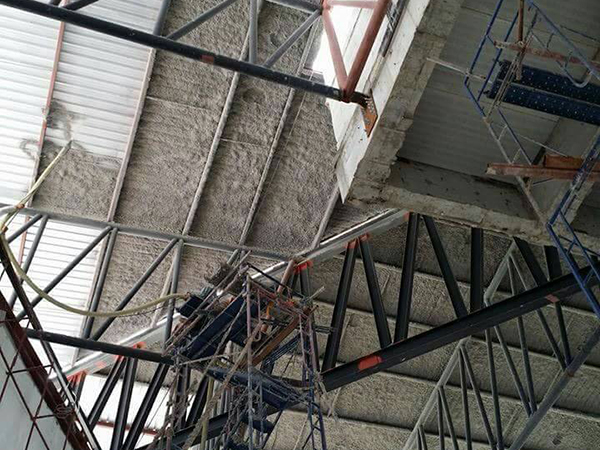

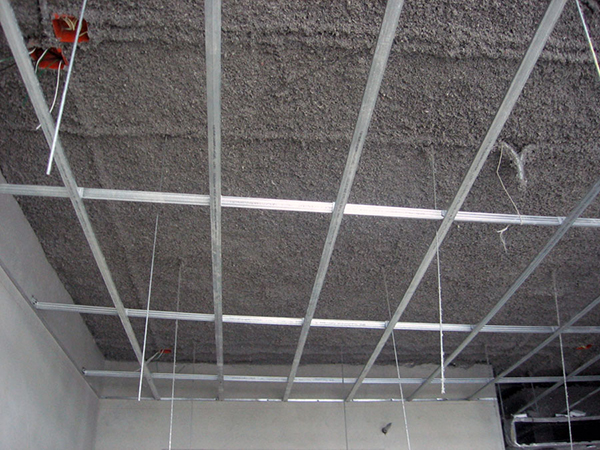

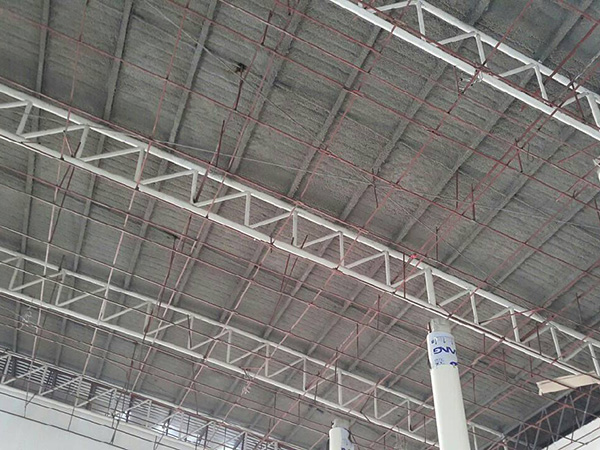

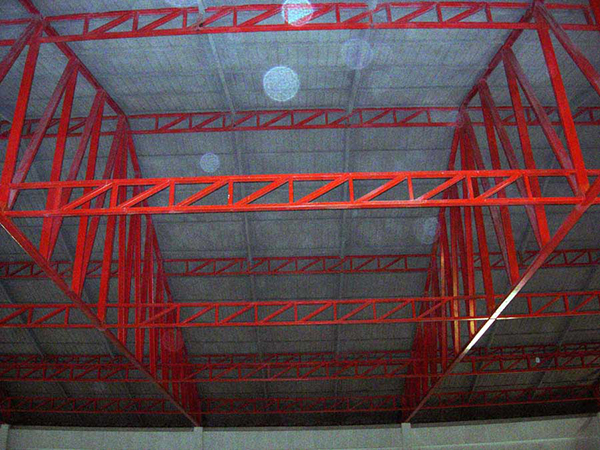

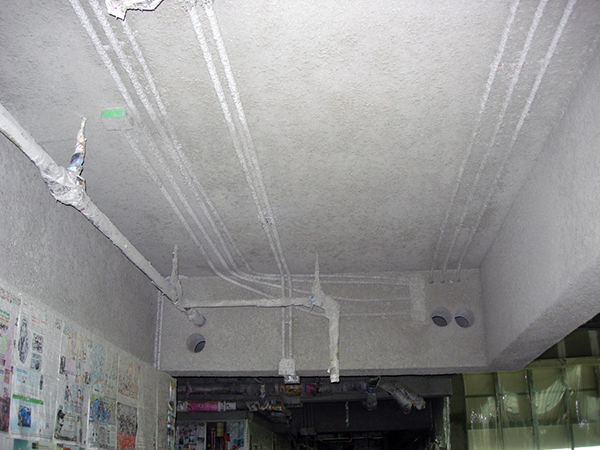

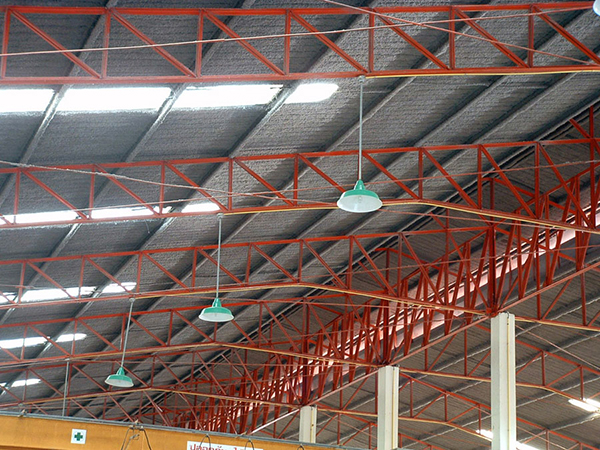

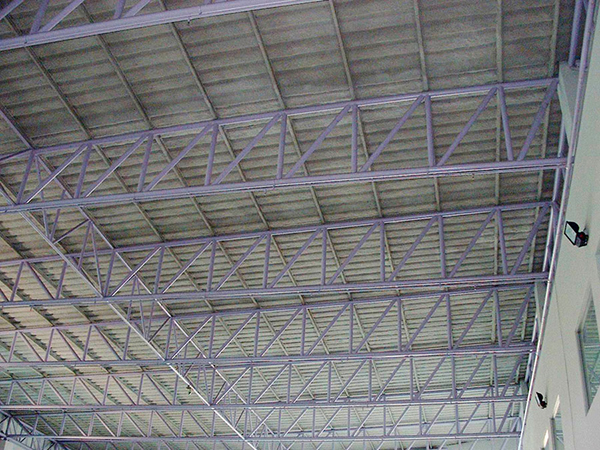

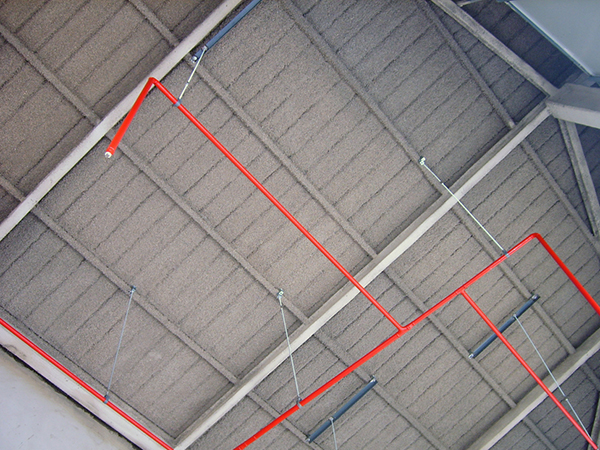

Cellumax SP-5A is pneumatically spray applied directly to the underside of any ceiling or roof surface.
Cellumax SP-5A can also be applied to the outer wall surface, being left exposed.

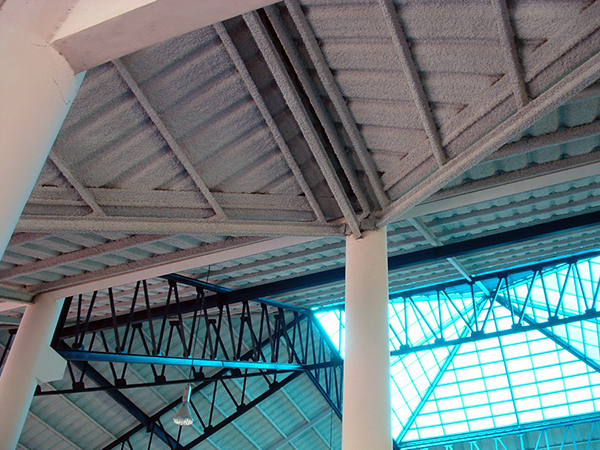

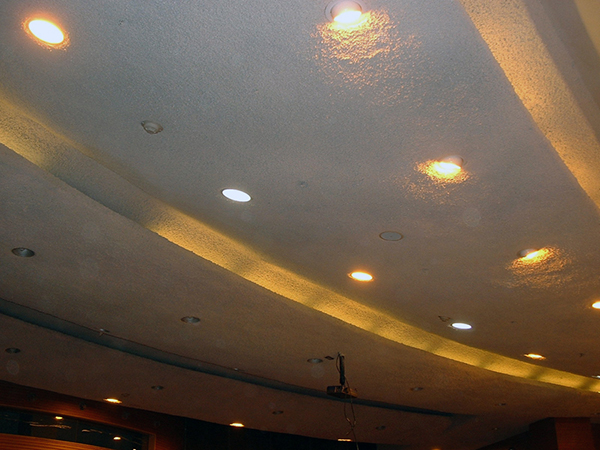

The hollow, all natural cellulose fibers and especially designed and patented adhesive form a cohesive monolithic bond with the substrate material. Left exposed, Cellumax SP-5A is aesthetically pleasing as an architectural ceiling design solution which also just happens to be one of the best thermal, acoustic and fire insulating barriers available today, C-Nat can also be applied directly to the underside of the outer roof membrane. Often applied to concrete, tiles and metal roofs, it is truly versatile within it's application thus allowing more architectural design choices, often reducing costs by acting both as the insulating barrier and an attractive ceiling surface.

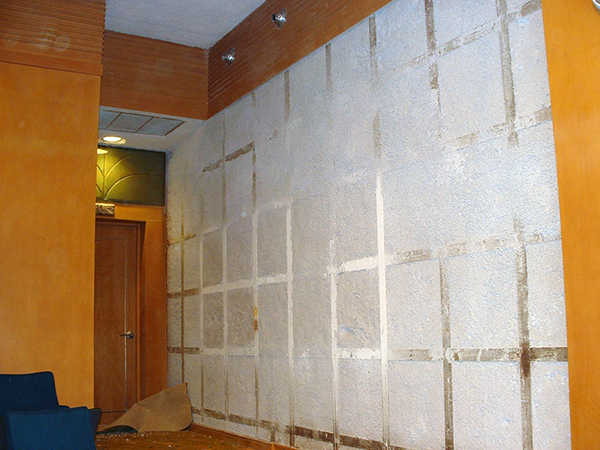

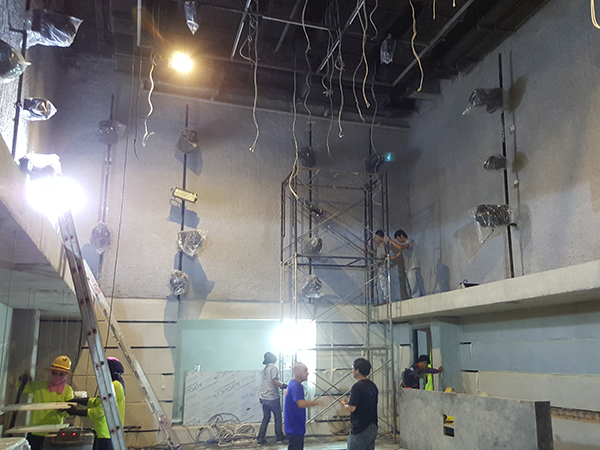

Cellumax SP-5A is often applied to walls and left exposed as an effective acoustical solution. High Noise Reduction Coefficients ensure excellent acoustical results at a very cost effective price.
Applied to any substrate, Cellumax SP-5A is an effective fire barrier, making any building safer, and probably saving you insurance dollars, as giving peace of mind.
Cellumax SP-5A Specification.
Thermal Performance

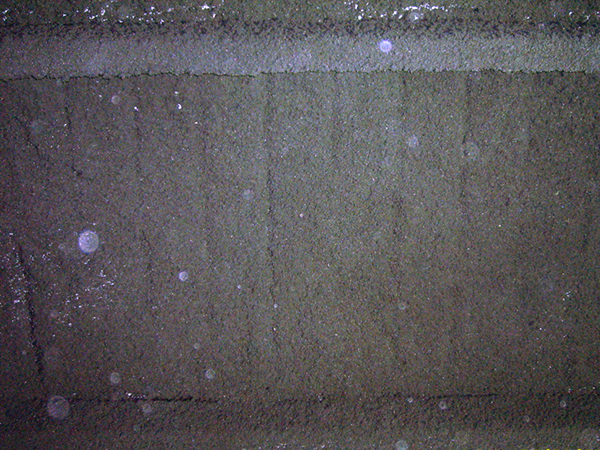

SP-5A insulates by creating dead air spaces between and with its hollow fibers. Because SP-5A fibers are sprayed-in-place, they fill cracks, seams and voids, forming a monolithic coating over the substrate which helps reduce air infiltration.
Unlike prefabricated insulations, SP-5A has on voids or compressed areas to reduce thermal efficiency. The result is a more effective in-place product with exceptionally low heat loss characteristics.
Condensation Control
For areas such as indoor pools and ice arenas, SP-5A aids in condensation control. The proper combination of SP-5A and ventilation prevents condensation on metal, concrete and other surfaces. SP-5A actually reduces ventilation requirements, saving in both the ventilation equipment investment and operation costs.
Acoustical Performance
The resilient fibers of SP-5A absorb sound energy instead of reflecting it , reducing reverberation time and making speech and music more intelligible. Excessive noise is eliminated with the application of SP-5A while greatly improving ambient sound quality in a wide variety of building projects including auditoriums, sports facilities, detention facilities, television, sound studios, convention centers and parking garages.
Cellumax CB - 5A
Cellumax CB-5A Specification.
System Description
CB-5A is a blend of specially prepared cellulose fibers, organic in nature, treated with adhesive and fire resistant chemicals. When sprayed in place, the interlocking fibers result in mass which produces excellent sound thermal properties.

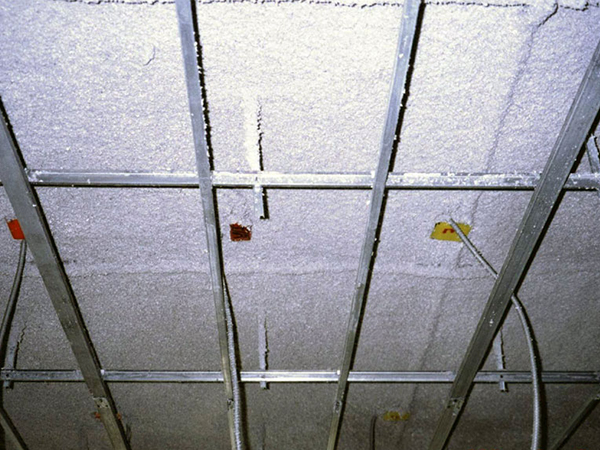

CB-5A is pneumatically spray-applied in wall and floor/ceiling cavities to form a monolithic coating. This process seals cracks and holes in the wallboard, around plumbing and electrical outlets, vent ducts and other irregularities. There are no compressed areas or voids to allow sound leaks, R value reduction, or air infiltration.
Performance Where It Counts
Provides superior sound transfer control demanded by building designers, owners and occupants. CB-5A assemblies perform closer to lab tested STC ratings in the field than do other conventional batt and sound board systems.This is due to the complete coverage and the sealing action of CB-5A .Laboratory tests have proven that CB-5A produces significantly higher STC values than other identically constructed wall systems.
The base system and results are follows:
Thermal Performance
To obtain maximum thermal efficiency, air infiltration must to be minimized. Sprayed in place, CB-5A completely fills cavities around pipes and obstructions, and covers cracks. CB-5A minimizes air infiltration and forms a highly efficient and effective thermal barrier. It can be sprayed to virtually any exterior stud or furred cavity, and in most cases the wall can be closed up the same day.
Cellumax Sheet
Available in sizes of 1200x600 mm and thickness range from 25 to 75 mm. High elasticity semi-rigid panel allows compacting, easy and clean fitting for internal walls, floors, party walls, internal/external studwork walls, acoustic insulation etc.

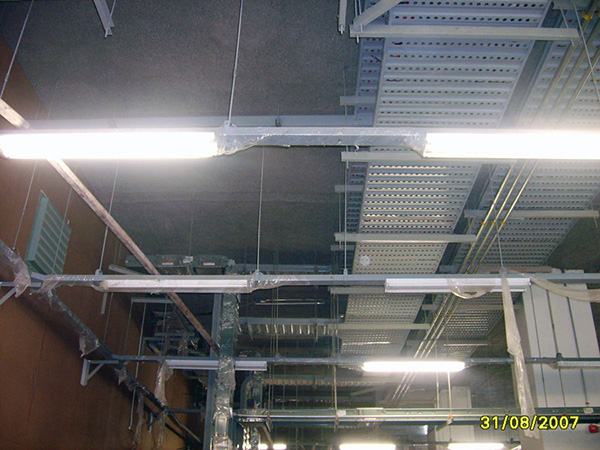

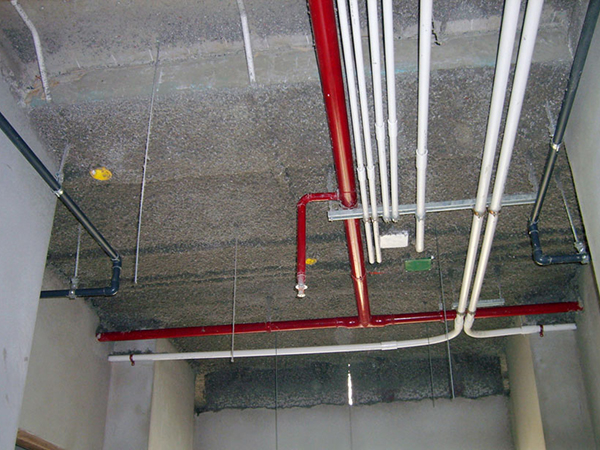

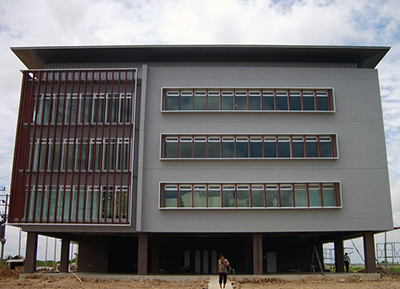

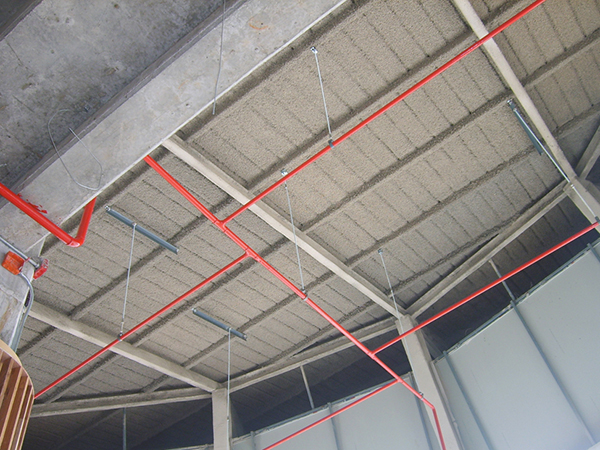

Projects
The environmentally responsible choice in insulation CELLUMAX
1
2
3
4
5
6
7
Energy Complex

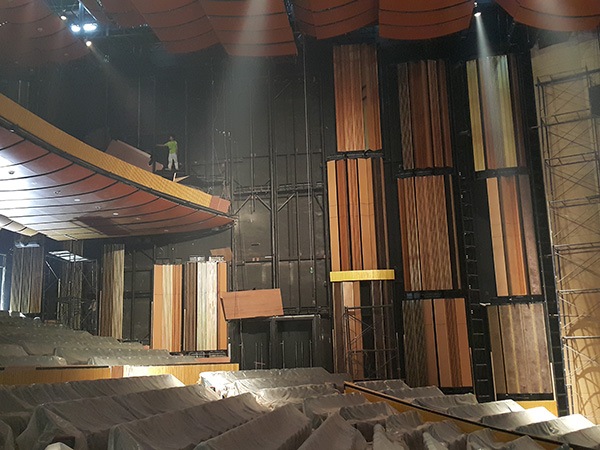

โรงละครสุริยะเทพ (ศาลาดนตรี) ม.รังสิต
Pub 72
WORKPOINT
สถานีโทรทัศน์ ช่อง PPTV (Ch3 เขมร)
จามจุรีสแควร์

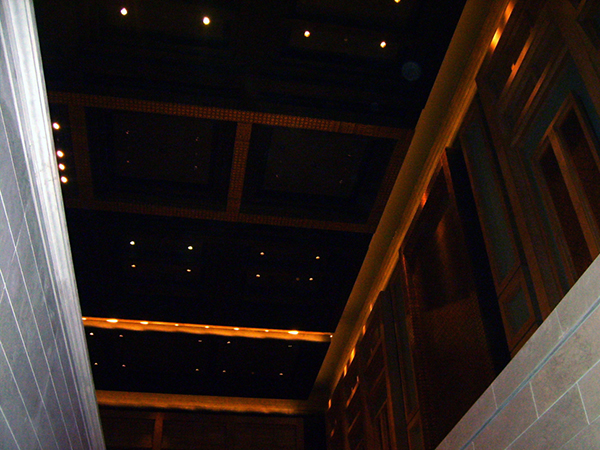

The Sukhothai Hotel
Novotel (Suwanabhumi)

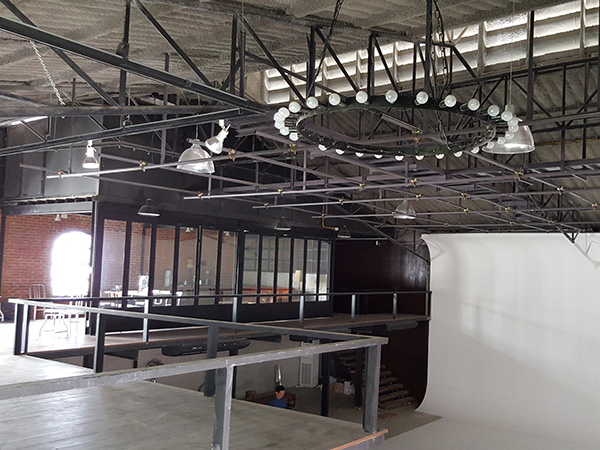

Studio G
ห้องดนตรี คณะดุริยางคศาสตร์ ม.ศิลปากร
สถานตากอากาศบางปู (กองทัพบก)

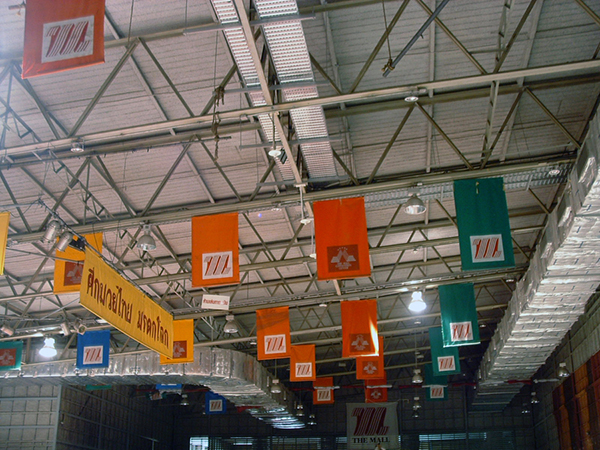

The Mall (งามวงศ์วาน)
มหาวิทยาลัยแม่ฟ้าหลวง จังหวัดเชียงราย
สหมงคลฟิล์ม
ศูนย์กีฬา อบต. นครปฐม
มศว. ประสานมิตร
โกดังสุวรรณภูมิ
มหาวิทยาลัยมหิดล
มหิดลวิทยานุสรณ์
มันดาเล
สนามแบดบินตัน (เพชรเกษม)
เทคโนโลยีบางพระ
โกดัง นวนคร
Miracle Hometel
Moon Star Studio
Cellumax ในระดับประเทศ
APEC Hall
King Power
เซ็นทรัลปิ่นเกล้า
The Mall Convention Center (ท่าพระ)
JJ Mall
โรงแรมตรีสรา ภูเก็ต
TOYOTA ร่มเกล้า
ช่อง 3
บ้านหม้อดอทคอม
ฮาฟาเล่
โรงเรียนนายร้อย จปร.
ศูนย์วิทยุกระจายเสียง เชียงใหม่
โรงพยาบาลบางโพ
การไฟฟ้านครชัยศรี
การไฟฟ้านนทบุรี
สำนักงาน ป.ป.ช.
โรงพยาบาลเสรีรักษ์
กรมดุริยางค์ทหารบก
กองเรือยุทธการ
กระทรวงพาณิชย์
การไฟฟ้าส่วนภูมิภาค
บางกอกแอร์เวย์

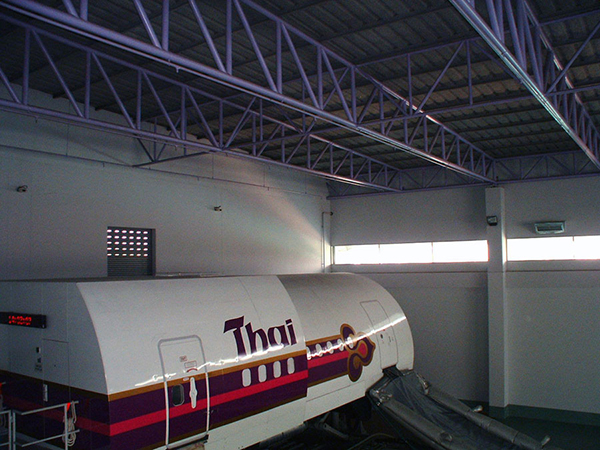

ศูนย์ฝึกอบรมลูกเรือการบินไทย
ศูนย์อบรมการไฟฟ้าส่วนภูมิภาค
บริษัท อสมท จำกัด (มหาชน)

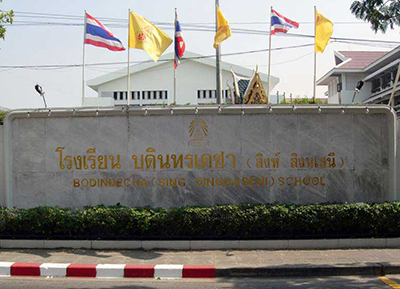

โรงเรียน บดินทรเดชา
มหาวิทยาลัยเทคโนโลยีพระจอมเกล้าธนบุรี
มหาวิทยาลัยบูรพา (ม.บูรพา)
โรงละครอักษรา
About
1994
Our Cellumax Beginnings
Cellumax Co.,Ltd. Group was established in Thailand in 1994 with the objective to utilize waste paper by way of a specially developed recycling process to manufacture a high quality cellulose based insulation material. Our Company registered the capital more than fourteen million bath.
1998
CELLUMAX® insulation
Cellumax’s manufacturing site in Samutprakran has been in operation since 1998 and offers today a wide and unique range of CELLUMAX ® insulation systems. The significance of cellulose with its natural and excellent thermal and acoustic properties and environmentally friendly and safe benefits is increasingly recognized the world over. Where mineral insulation materials or man-made products merely insulate, cellulose offers a far wider range of benefits to the user. Nothing and no-one is as inventive as Mother Nature. The natural properties of cellulose remain stable whether in spray-on and or in panel form. The absorption characteristics of cellulose also regulate the moisture content of insulation to suit the surroundings. The excellent heat-retaining capacity improves heat protection all year round. Cellumax’s activities have helped to increase awareness of ecological issues and the advantage of alternative natural insulation material.
Today
Wide range of insulation application
Today we offer CELLUMAX ® spray-on-system for a wide range of insulation application. Cellumax is active in Thailand nationwide and offers technical expertise advice and service to architects, contractor, developer, consultants and homeowner on CELLUMAX ® insulation systems.
Today
Export products and technologies
Today, Cellumax Co.,Ltd. Group Success to export our products and technologies to Australia, Singapore, Laos and Bangladesh. This is our pride for Thai Company has been recognized in the international level.
Be Part
Of Our
Story!
Characteristics
Characteristics of CELLUMAX®
1. Composition
CELLUMAX® systems are produced from recycled news print, blended with non-hazardous binder and fire protecting agent.
2. Most efficient in heat insulation
CELLUMAX® can reduce heat transmission from roof or wall by more than 90% (depend on the size and the thick of the inventory)
3. Energy-saving
Since CELLUMAX® can considerably reduce heat transmission from roof or wall, the room temperature is 10-12 C lower than the external temperature (depending on environment). After the air-condition has been turned on for a few minutes, the room temperature quickly falls. Consequently, the workload of the air-conditioner is cut, and 40% of the energy is saved.
4. Fire-resistant
Composed of fire-resistant boric acid, CELLUMAX® is non-flammable. When burning, it is only partly consumed and will not enable the fire to spread.
5. Vermin-resistant
The composition of CELLUMAX® systems repels vermin and insects infestation and breeding.
6. Non toxic
CELLUMAX® is a natural product made of pulp, processed with chemicals, harmless to humans, although detectable by adour. Unlike other insulators, it produces no toxic smoke when burned.
7. Non irritant
Free of fiberglass, asbestos or any other irritant materials, CELLUMAX® causes no allergies or skin irritation.
8. Mildew proof
CELLUMAX® systems are graded in category 0 according to DIN IEC 68, part 2 – 1 (No risk of fungal attack). The material is hydroscopic and regulates air humidity.
9. Noise inhibiting
CELLUMAX® is fluffy, thus able to inhibit noise penetration. It can reduce loudness by 25-50% volumes of 20-60 decibel can be lowered to a comfortable threshold.
10. Lightweight
CELLUMAX® spray-on systems are light in weight due to the nature of the material and weight only 2.5 kg/m2 (For Cellumax Sheet)
11. Easy installation
CELLUMAX® systems are highly flexible and can be easily installed in a relatively short space of time in all kinds of construction areas. The flexCL 040 panel system is easy to fit and suitable for do-it-yourself installation.
12. No packing down
CELLUMAX® has a relatively high density so its fluffiness remains, no packing down or deterioration will occur. As a result, it lasts as long as the building.
